Cubic Online NDIR Biogas Analyzer
Introduction:

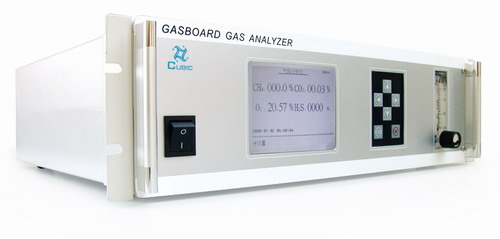

Gasboard 3200 infrared biogas analyzer can be used for measurement of the concentration of CH4, CO2, H2S and O2 in sample gases simultaneously . It is based on the single source two beams non-dispersion infrared (NDIR) method for CH4, CO2, fuel cell method (ECD) for H2S and O2. This analyzer is designed with 19 inches 3U smaller physical dimensions and the simple digital pulsable infrared source and two beam systems. The general application is landfill, anaerobic digestion and other.
Features:
- Up to 4 gases measurement with combination of NDIR and ECD gas sensor technology
- Simple construction with pulsable infrared source and two beams technology
- Constant temperature control for gas bench for high stability
- 320*240 LCD with menu operation.
- Repeatability: ±0.5% FS
- Linearity: ±1% FS
- Zero/Span drift: ±2%FS
Specifications:
Measure
Gas |
Measure
Method |
Measure
Range |
Resolution |
Precision |
Error |
| CO2 |
NDIR |
50% |
0.01% |
≤2% FS |
≤2% |
| CH4 |
NDIR |
100% |
0.01% |
≤2% FS |
≤2% |
| H2S |
ECD |
9999PPM |
1PPM |
≤3% FS |
≤2% |
| O2 |
ECD |
25% |
0.01% |
≤3% FS |
≤2% |
Note: Measurement range can be customized by the requirement
| Gas flow |
0.7 ～ 1.2 L/min |
| Pressure of gas |
<1 Bar |
Sampling gas
requirement |
Remove water vapor, dust(<1um) and oil etc. |
| Response Time |
<15s (NDIR) |
| Warm-up time |
15 min |
Communication
Port |
RS232 (optional) |
| Output |
4～20 mA (according to the requirement) |
| Work temperature |
0～0℃ |
| Relative humidity |
5～85% |
Ambient air
pressure |
86～108kPa |
| Power supply |
220V±44V AC 50Hz±1Hz |
| Dimension |
483mm×373mm×140mm（W×L×H） |
| Weight |
12kg |
Documentation
Brochure Gasboard 3200
